CWDM,4/8/16 ch Coarse Wavelength Division Multiplexing

Product Overview
Features
Technical Parameters

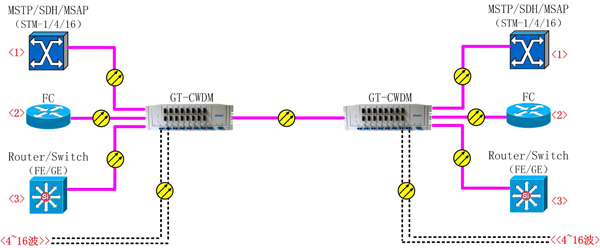

Application Diagram

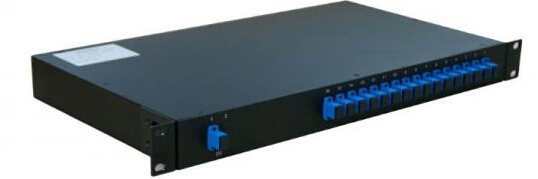

GT-CWDM-4/8/16 is Global Tech’s CWDM platform, which is designed as a low-cost, massive-capacity, easy-deployed, flexible-application, traffic-transparent and expandable short haul WDM transport system. Nowadays, more and more widely applied in the metro networks, CWDM brings a new solution for the connection between Metro Access Network and Metro Core Network

l Seamlessly interwork with DATA (Ethernet), TDM (PDH, SDH) and SAN (Fiber Channel, ESCON, FICON) traffic.

l Any rate interface 10Mbps~2.5Gbps.

l Support unidirectional signal fiber or bidirectional signal fiber application.

l Varied network topology with line and path protection over varied layers.

l AC, DC power supply, or mixed power supply.

l System Capacity

n 4/8/16 wavelength

n Channel rate, 100/155/622Mbps, 1/2.5/10Gbps

n Single span length, 80 km

n G.694.2 compatible

l User Interface

n 10M/ 100M Ethernet/ GE

n STM-1/STM-4/STM-16/ STM-64

n Fiber Channel

n ESCON

n FICON

n Video

n Any bit rate interface 10Mbps ~2.5Gbps

l Optical Cable

n G.652

n G.653

n G.655

l Physical Dimension

n 442mm (W)*135mm (H)*301mm (D).

n ANSI 19”, 23” Rack.

n ETSI 300mm(D), 600mm(D) Rack.

l Network Management

n Standard SNMP V2.0

n TMF814 CORBA Northbound Interface

n Standard MIB files, compatible with general SNMP Network Management System

l Operation Environment

■ Working Temperature: -10℃~ 55℃

■ Storage Temperature: -40℃~ 85℃

■ Relative Humidity: 5%~ 95%, non-condensing

■ No corrosive and solvent gas, no dust and heavy EMI

■ Power Supply: DC -72~ -36V

■ Physical Dimension: 442mm(W)* 135mm(H)* 301mm(D)
